X-Ray Diffraction in Gemology: Identifying Crystal Structure

X-ray diffraction is the most powerful tool in gemological science. It can definitively identify any crystalline gem material, detect treatments, and reveal the atomic architecture of minerals that took millions of years to form.

---

What Is X-Ray Diffraction?

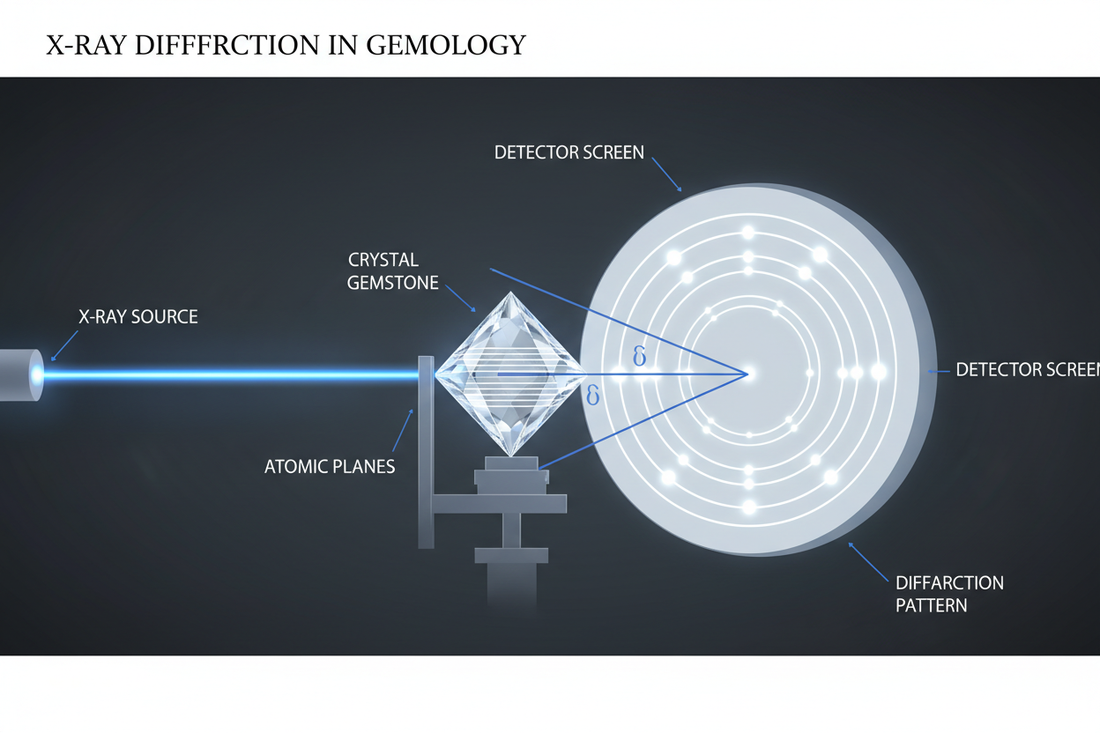

X-ray diffraction (XRD) uses X-rays to determine the crystal structure of a material. When X-rays strike a crystal, they scatter off electrons surrounding each atom. Because atoms are arranged in a regular repeating pattern, the scattered X-rays interfere predictably, producing a diffraction pattern of bright spots or rings. By analyzing these patterns, scientists identify the mineral species, unit cell parameters, and atomic positions.

---

Bragg's Law

The mathematical basis of XRD is Bragg's Law (1913): n times lambda equals 2d times sin(theta), where lambda is the X-ray wavelength, d is the spacing between atomic planes, and theta is the diffraction angle. X-rays diffract strongly only at specific angles corresponding to atomic plane spacings, allowing calculation of unit cell parameters and mineral identification.

---

Types of XRD in Gemology

Powder XRD

Uses finely ground material. Millions of randomly oriented crystals diffract simultaneously, producing concentric rings compared to a database of over one million known mineral patterns. Fast and excellent for identification, but requires grinding.

Single Crystal XRD

Uses one well-formed crystal rotated in the X-ray beam. Records thousands of diffraction spots to determine complete crystal structure including every atom position. Non-destructive to the crystal, highest accuracy.

Micro XRD

Uses a focused beam as small as a few micrometers to analyze tiny areas including individual inclusions within gems, without removing them from the host stone.

---

XRD Applications in Gemology

Definitive Gem Identification

XRD distinguishes minerals that look identical optically, such as colorless topaz vs quartz, or jadeite vs nephrite jade. The diffraction pattern is unique to each mineral species.

Detecting Treatments

• Fracture filling: Glass or resin fillers are amorphous and show no sharp diffraction peaks
• Irradiation: Creates structural defects that broaden diffraction peaks
• Metamict zircon: Radiation damage destroys crystal structure; XRD shows broad weak peaks or none

Inclusion Identification

Micro XRD identifies inclusion minerals within gems without removing them, invaluable for geographic origin determination since specific inclusions are characteristic of specific sources.

---

XRD vs Other Gemological Techniques

Technique	What It Measures	Destructive?	Best For
XRD	Crystal structure	Sometimes	Definitive identification
Raman spectroscopy	Molecular vibrations	No	Fast ID, inclusions
FTIR spectroscopy	Molecular bonds	No	Treatments, organic gems
LA-ICP-MS	Trace elements	Slightly	Origin determination
Refractometer	Refractive index	No	Routine identification

---

Frequently Asked Questions

Is XRD destructive to gems?

Single crystal XRD is non-destructive. Powder XRD requires grinding a small amount of material. Micro XRD can analyze gem surfaces with minimal damage. Most gem labs use non-destructive techniques whenever possible.

Can XRD determine geographic origin?

XRD alone cannot determine origin. Combined with trace element analysis and inclusion identification, it contributes to origin determination. Major gem labs like GIA and Gubelin use multiple techniques together.

Why did the Braggs win the Nobel Prize?

William Henry Bragg and William Lawrence Bragg shared the 1915 Nobel Prize in Physics for developing X-ray crystallography, making it possible to determine atomic structure of crystals for the first time. They remain the only father-son pair to share a Nobel Prize.

---

Conclusion

X-ray diffraction is the gold standard of gem identification. From discovering DNA's double helix to identifying new gem minerals, XRD has driven some of the most important scientific discoveries of the past century. In gemology, it provides the definitive answer when all other techniques leave doubt, revealing the atomic architecture of gems with unmatched precision.
