When Needles Meet Quartz: Reading Ambiguous Evidence in Tourmalinated Quartz

What the Microscope Shows and What It Cannot Decide

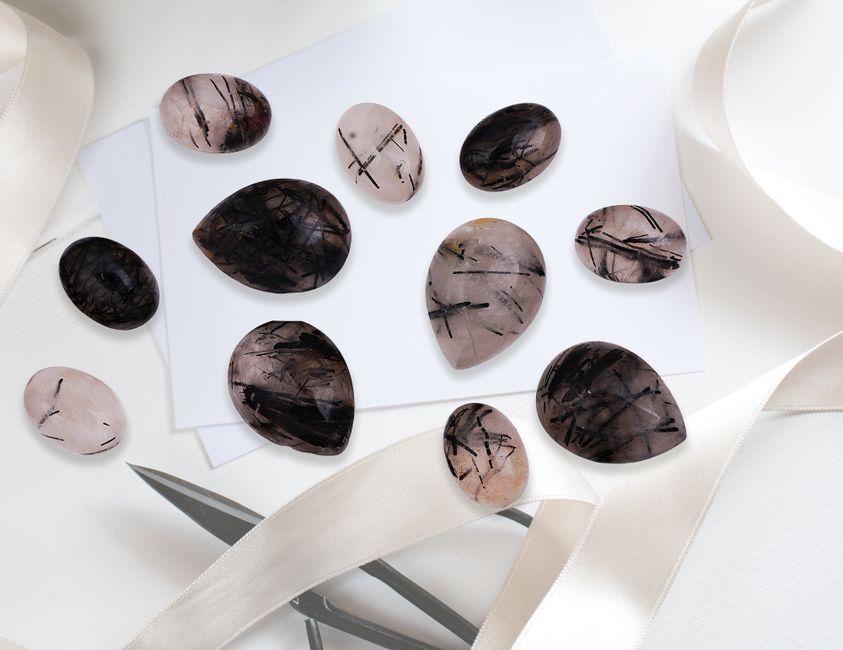

Tourmalinated quartz is one of the most recognizable inclusion gem materials: transparent to translucent quartz containing dark, acicular to prismatic crystals, most often black tourmaline (schorl-dravite series) but occasionally other mineral phases. The visual appeal is straightforward, but the scientific interpretation of what those needles represent is often more tangled than it first appears. A microfeature that looks like tourmaline at low magnification may be ambiguous, and the same visible appearance can arise from different growth histories. The central scientific question is not simply what the inclusions are, but what their orientation, termination, and interface relationships reveal about the quartz’s crystallization and later deformation. The answer is rarely a single measurement; it is an evidence chain that combines crystallography, optical microscopy, and an honest accounting of what the data can and cannot resolve.

Why Needle Orientation Is the Key Evidence

In the strict sense, tourmalinated quartz is not a mineral species or a formal variety. It is a descriptive field and trade term for quartz containing embedded tourmaline-group crystals. The host is crystalline SiO₂ in the trigonal system, typically showing the hexagonal habit of alpha-quartz at low pressure and temperature. Tourmaline is a borosilicate mineral group with a cyclosilicate structure, trigonal symmetry, and a pronounced prismatic habit elongated along the crystallographic c-axis. The two materials crystallize independently and are generally regarded as forming together in a pegmatitic or hydrothermal environment, with the tourmaline forming first or contemporaneously and the quartz enclosing it.

The key observation is that many needles lie in three sets roughly 120 degrees apart in the basal plane of the quartz. That pattern is not decorative randomness. It reflects epitaxial or near-parallel alignment in which the tourmaline needles nucleated and grew along directions dictated by the quartz lattice or by a shared growth direction in a pegmatitic fluid. Where the needles are truly oriented, their long axes commonly align with the c-axis of the quartz, creating the familiar threefold grouping when viewed down that axis. But here the first interpretive trap appears: a threefold-looking pattern can also arise from needles that were randomly oriented and then sliced obliquely by a cut gemstone. The apparent geometry can be an artifact of the viewing plane rather than evidence of crystallographic control.

Distinguishing Growth Features from Artifacts

To decide between these two interpretations, a gemologist looks for independent evidence of a shared growth event. Terminations are especially informative. A needle that terminates in a clean crystal face inside the quartz, with the quartz continuing around it, is consistent with simultaneous growth. A needle that ends in a jagged fracture or shows a healed crack running through it suggests later emplacement or post-growth modification. Healing fractures, healing halos, and fluid films around needles are common in quartz and complicate the picture, because they record a later episode of fracturing and resealing that overprints the original growth texture.

The Ambiguity of the Needle Species

Most tourmalinated quartz contains tourmaline, but the identification is often presumed rather than proven. Several other acicular minerals can occur as dark needles in quartz, including rutile, actinolite, and various oxide phases, and some are not tourmaline at all. Visual appearance alone cannot reliably distinguish these. Needle color, pleochroism, and absorption behavior offer clues, but they are not definitive under all conditions. A proper identification typically requires a combination of optical microscopy, Raman spectroscopy, and, where necessary, electron microprobe or energy-dispersive X-ray analysis. Raman spectroscopy is valuable because it probes the vibrational modes of the crystal lattice and can distinguish quartz-hosted tourmaline from other silicate and oxide needles, but it must be interpreted against a reference library and with attention to fluorescence interference, laser-induced degradation, and the orientation of the acquired spectrum relative to the needle.

Even when the needle is confirmed as schorl, the term tourmalinated quartz does not specify the tourmaline species, chemical zoning, or growth history. Tourmaline is a solid-solution group, and the needles may vary in composition along their length or between individuals in the same host. That variation is not a flaw in the material; it is a record of changing fluid chemistry during growth, and it is one reason a single spot analysis cannot characterize a whole specimen.

What Spectroscopy Adds and What It Does Not

Spectroscopic methods measure different things. Raman scattering identifies molecular and lattice vibrations. Infrared spectroscopy probes absorption related to structural groups, including hydroxyl and boron-related features in tourmaline, but in opaque dark needles the signal may be weak or obscured by the host. X-ray diffraction characterizes crystalline phases but generally requires a sample, making it less suited to intact gems. None of these methods by itself proves geographic origin, treatment history, or even that the host is natural rather than synthetic. Each answers a narrower question, and the full interpretation depends on combining them with microscopic observation.

When Growth History Complicates the Story

A common misconception is that visible needles prove the quartz is natural. In fact, the presence of inclusions is not a guarantee of natural origin, and synthetic quartz can contain inclusions under some growth conditions. More importantly, the appearance of tourmalinated quartz can be mimicked by fracture filling or by glass composites in which dark needles or foreign material are embedded in a lower-hardness medium. Under the microscope, a composite may show a flat interface, a meniscus, a color zone, or a difference in surface luster that would not appear in a genuine single crystal. These clues are visual and qualitative; they may raise or lower confidence but they rarely produce certainty in isolation.

There is also the question of what the needles tell us about the quartz’s formation. Tourmaline-bearing pegmatites are the classic source, but hydrothermal quartz veins can also contain tourmaline, and metamorphic rocks can host quartz with relict or recrystallized tourmaline inclusions. The same visible material can therefore come from geologically different settings. The needles record that boron was present in the growth environment, but they do not by themselves pin down pressure, temperature, or tectonic setting with precision. Any inference about formation conditions is a model consistent with the observed features, not a direct measurement.

Interpretive Limits and Working Conclusions

The most scientifically defensible conclusion is that tourmalinated quartz is best understood as a growth-texture record, not a single diagnostic property. The needles’ orientation, termination style, interface relationships, and mineral identity each contribute evidence, and the weight of that evidence depends on how directly each observation constrains the crystal’s history. A gemologist who reports only that the specimen contains black needles has described an appearance but not resolved the material. A stronger assessment states which observations support a natural, co-crystallized origin, which are ambiguous, and which would require additional analysis to settle.

Uncertainty here is not a failure of method. It is an honest recognition that the same visual texture can arise from different sequences of nucleation, growth, fracturing, and healing, and that no single instrument resolves all of them. Careful microscopy, confirmed mineral identification, and explicit reasoning about what the evidence supports remain the most reliable path through the ambiguity. That is the real scientific value of tourmalinated quartz: it is a compact lesson in how inclusions encode process, and how cautious interpretation separates what we can observe from what we can only infer.
