Reading Growth Zoning in Tourmalinated Quartz: Why Needles Alone Cannot Prove Treatment

When Inclusions Are Not the Whole Story

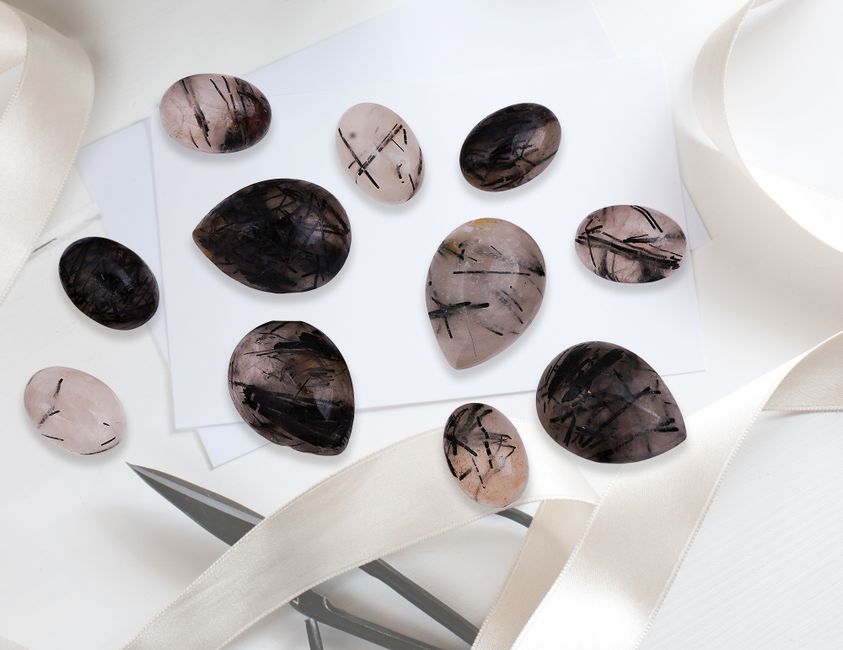

Tourmalinated quartz is a rock-crystal host that contains black, needle-like crystals of a tourmaline-group mineral, usually schorl, the iron-rich member of that solid-solution series. The material is visually distinctive: dark prisms and acicular tourmaline crystals thread through otherwise transparent quartz. Because such specimens are so recognizable, they are often assumed to be natural and untreated by definition. That assumption is not scientifically safe. The same visual signature can be reproduced in laboratory-grown quartz, and the host quartz itself can be heat-treated, irradiated, or fracture-filled without destroying the tourmaline needles. The relevant analytical question is therefore not whether needles are present, but whether the growth structure of the quartz is consistent with natural formation or with synthesis, and whether the tourmaline is primary, relict, or introduced. The evidence chain runs through internal growth zoning, not through the presence of inclusions alone.

What Needs to Be Distinguished

Three separate questions get conflated in casual discussion of tourmalinated quartz:

• Is the host quartz natural or synthetic, that is, grown hydrothermally in a laboratory?
• Is the tourmaline syngenetic (grown with the quartz), protogenetic (older and incorporated), or epigenetic (introduced later along fractures)?
• Has the assembled material been modified by treatment such as irradiation, heating, fracture filling, or dyeing?

Each question requires different evidence. A single visual observation cannot resolve all three. The most powerful discriminator in this material is the internal growth record preserved in the quartz itself, because quartz grows layer by layer and its growth surfaces can trap the needles and leave concentric or sectorial zoning that reflects the growth environment.

How Quartz Records Its Growth History

Quartz crystallizes in the trigonal system, space group P3₂21 or P3₁21 depending on handedness. Under near-equilibrium natural conditions, crystals develop a hexagonal prism terminated by rhombohedral faces. Growth proceeds by addition of silica tetrahedra to specific faces. If trace elements or fluid inclusions are present, they can be incorporated preferentially into particular growth sectors or along growth horizons. The result is growth zoning: a series of compositional or defect-related layers that mirror the external crystal form. This zoning is observable with polarized light microscopy, sometimes assisted by cathodoluminescence, because different growth sectors can have subtly different defect concentrations, strain, or trace-element content.

Natural versus hydrothermal growth zoning

Natural quartz often shows irregular, oscillatory, or sector-zoned growth patterns that reflect fluctuating fluid chemistry, temperature, and pressure over geological time. Hydrothermal synthetic quartz, by contrast, is grown under controlled conditions: a nutrient is dissolved in an alkaline solution at high temperature and pressure, and crystallization occurs on a seed plate under a temperature gradient. The resulting crystal usually has a characteristic seed plate remnant, a planar region that marks the original seed, and growth zoning that is more regular, often with a distinctive sectorial pattern that follows the seed orientation and is confined to the growth chamber geometry. In some synthetic material, fine striae or growth bands are visible under magnification or with cathodoluminescence, but the exact appearance depends on the growth run, the nutrient, and the dopants.

No single zoning pattern is universal. Some natural quartz is remarkably free of visible zoning; some synthetic quartz lacks obvious seed features after fabrication. That is why zoning must be interpreted together with other evidence, not treated as a definitive fingerprint in isolation.

The Tourmaline Needles: Syngenetic, Protogenetic, or Epigenetic?

In tourmalinated quartz, the tourmaline needles are typically black schorl with a prismatic habit and a striated surface parallel to the c-axis. Their orientation is not random: because quartz and tourmaline grow in the same host, needles often radiate from a common nucleation point or align along preferred crystallographic directions of the quartz. In thin section, they appear as high-relief, strongly pleochroic prisms, opaque to dark brown-green in transmitted light for iron-rich tourmaline.

If the tourmaline grew simultaneously with the quartz, the needles are syngenetic and may be partly enclosed by quartz growth layers. If the tourmaline crystallized earlier in the host rock and was later engulfed by quartz, it is protogenetic; such needles can show reaction rims or fracturing. If the tourmaline was introduced after quartz growth along open fractures, it is epigenetic and will tend to follow fracture planes rather than cross growth zones. Distinguishing these three categories requires careful transmitted-light microscopy, sometimes with crossed polars and a gypsum plate to assess orientation and internal strain. The distinction matters because epigenetic needle-like minerals can be a sign of secondary mineralization, not of the original quartz growth environment.

Why composite and assembled material complicates the picture

Some commercial material sold as tourmalinated quartz is not a single naturally intergrown crystal. It may be an assembled stone: a clear quartz cabochon or slab cemented over a layer containing tourmaline, or a fractured quartz filled with a resin and sprinkled with tourmaline fragments. Such composites can mimic the appearance of natural intergrowth but have interfaces, adhesive layers, or a non-crystallographic distribution of needles. Under magnification, the tourmaline in a composite may not show the same orientation relationship to the host and may sit at a distinct optical boundary. This is not a mineral species distinction; it is a structural distinction that must be established before any claim about natural origin is made.

Treatment Detection and the Evidence Chain

The common treatments applied to quartz, or to quartz-containing material, include heating, irradiation, fracture filling, dyeing, and coating. None of these is automatically detectable from the presence of tourmaline needles.

Heating and irradiation

Heating quartz can change the color of certain varieties—ametrine, smoky quartz, and rose quartz—by altering defect centers or trace-element oxidation states. Irradiation can deepen or introduce color by creating electron or hole traps. In tourmalinated quartz, the host quartz may be colorless or smoky. If the quartz is smoky, it could be natural or the result of laboratory irradiation; the presence of tourmaline does not reveal which. Detection of irradiation in quartz often relies on subtle spectroscopic features and on the stability of the color under controlled conditions, but the evidence is not always conclusive. A laboratory may describe the color as possibly irradiated rather than definitively treated, depending on the material and the available reference data.

Fracture filling and dyeing

Fracture filling reduces the visibility of cracks by introducing a material with a refractive index closer to that of quartz. In tourmalinated quartz, fractures may be natural or may have been created during cutting. A filler can be detected by reflected light, by a flash effect as the stone is moved, or by spectroscopic methods that identify organic residues. Dyeing can introduce color into fractures or into porous zones; it is not the same as body color and does not change the quartz lattice. Again, the tourmaline needles are irrelevant to whether a filler or dye is present; the evidence must come from the fracture surfaces and the filler itself.

What spectroscopy can and cannot do

Raman spectroscopy can identify tourmaline and quartz by their vibrational signatures and can sometimes detect organic fillers. Fourier-transform infrared spectroscopy can reveal water, hydroxyl, or organic species in fractures. Neither method, by itself, proves that the quartz grew naturally, and neither establishes whether irradiation was natural or artificial. These methods are most useful when combined with microscopy and with reference to established spectral libraries. They are not a universal answer key.

Why One Observation Is Never Enough

The central misconception is that a visual feature—needles in quartz—can stand in for a full origin and treatment assessment. In practice, tourmalinated quartz is an intergrowth, and the scientific question is whether the intergrowth is natural or manufactured, and whether the host has been modified. The strongest conclusions come from agreement among several lines of evidence:

• Growth zoning and seed remnants in the quartz, observed by microscopy or luminescence methods.
• The spatial relationship between tourmaline needles and quartz growth surfaces.
• The presence or absence of fracture-filling residues or dyes.
• The spectroscopic signature of the quartz and any foreign material.
• The consistency of the tourmaline composition with a natural geological setting or with a synthetic growth environment.

No single line is definitive in every specimen. A natural-looking zoning pattern does not by itself prove natural origin, because some synthetic quartz can mimic natural zoning. Conversely, an unusual feature does not automatically prove synthesis or treatment. Laboratories may differ in how they weight these observations, particularly when reference datasets are limited or when the material is heterogeneous.

What Can Be Concluded

Tourmalinated quartz is best understood as a record of two crystallization histories: that of the tourmaline and that of the quartz host. The visible needles tell us that tourmaline was present at some stage, but they do not reveal whether the quartz grew around them naturally, whether the tourmaline was introduced later, or whether the stone is an assembled composite. The most informative evidence lies in the growth zoning of the quartz, the orientation of needles relative to growth surfaces, and the chemical and spectroscopic signatures of both phases. These observations, taken together, can support a reasoned conclusion about origin and treatment, but they rarely provide absolute certainty. Recognizing that limit is not a weakness of the science; it is the basis for accurate reporting and for distinguishing what has been measured from what has been inferred.
