Fracture-Filled Ruby and the Instrumental Shift in Gem Identification
Share
When a Filler Hides in Plain Sight

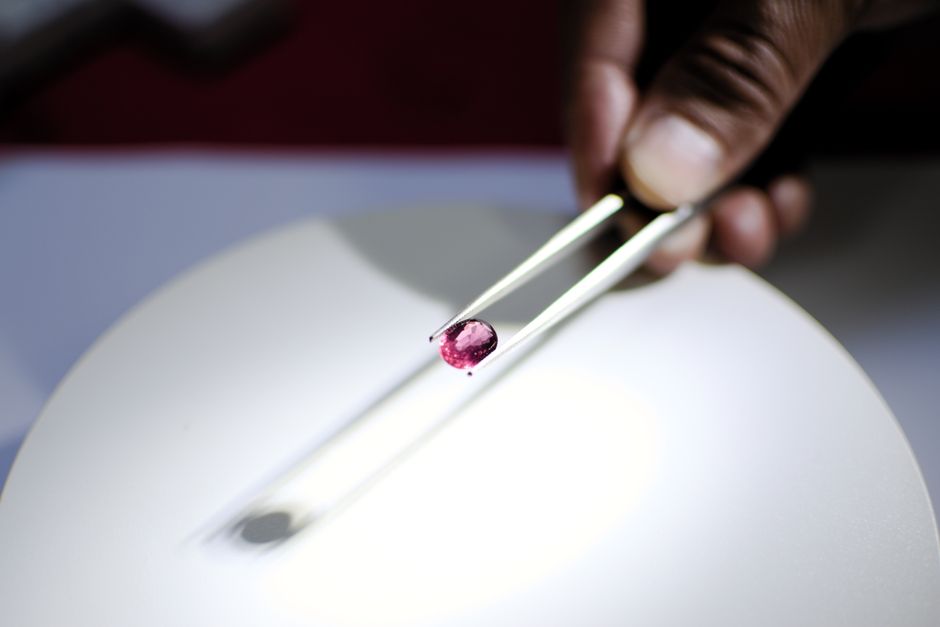

A fracture-filled ruby can look, to the unaided eye, remarkably like a cleaner and more valuable stone. The filler occupies open fractures and reduces the optical contrast between the crack and the surrounding corundum, so light passes through with less interruption and the stone appears more transparent. For decades, the primary tool for detecting such fillers was the trained eye behind a microscope, sometimes aided by nothing more than oblique illumination and a little patience. That approach worked, but only within limits. The decisive change came not from a single new instrument but from a constellation of them: Raman spectroscopy, energy-dispersive X-ray fluorescence, and later laser ablation inductively coupled plasma mass spectrometry. Each probed a different physical quantity, and together they turned fracture filling from a visual judgment call into a multi-signal analytical problem.
The scientific question at the center of this shift is not simply whether a filler is present. It is whether the evidence produced by a given method can distinguish a filled fracture from an unfilled one, from a fracture containing a natural mineral inclusion, or from a surface residue that never entered the stone at all. That distinction matters because the physical causes are different even when the visual appearance is similar.
What Fracture Filling Actually Does to a Ruby
Ruby is the red gem variety of corundum, a crystalline aluminum oxide with the formula Al2O3. Its hardness and chemical resistance make it durable, but it is not immune to fracturing. When a ruby is subjected to stress, whether during formation, mining, or cutting, it can develop cracks that propagate along crystallographic planes. These fractures are not empty voids. In a natural stone they may contain fluid inclusions, mineral phases, or nothing detectable at microscopic scale depending on their history.
Fracture filling introduces a foreign material into those open spaces. The goal is optical: most fillers have a refractive index closer to corundum than air does, so the refractive-index contrast at the fracture wall is reduced, and the crack becomes less visible. The filler does not heal the crystal lattice. It does not restore the broken bonds between aluminum and oxygen ions across the fracture surface. It simply occupies the gap. This is a critical distinction: a filled ruby is structurally still a fractured ruby. The filler changes the optical behavior of the fracture, not the mechanical integrity of the host crystal.
Because the filler is a separate phase with its own composition, its presence can be detected by methods sensitive to chemistry or vibrational structure rather than by methods that only measure bulk optical properties. This is where the instrumental shift becomes scientifically meaningful.
Why the Microscope Alone Reached Its Limit
Under magnification, a filled fracture often shows a characteristic flash effect: a subtle bluish or purplish reflection that moves as the stone is tilted, arising from the optical interface between filler and corundum. The effect is real and diagnostically useful, but it is not universal. Some fillers produce weak or absent flash effects. Some fractures are nearly invisible even when filled. Some natural fractures show similar optical behavior because of thin films of natural fluid or because of the geometry of the crack itself.
Microscopy can also reveal gas bubbles, flow structures, or a slightly different surface texture where the filler meets the host. These features are indicative, not definitive. A microscope cannot determine the chemical identity of the filler, and it cannot reliably distinguish a filler from a natural mineral phase that happens to occupy a fracture. The method answers a visual question: does something appear to be inside the fracture that does not belong there? It cannot answer the chemical question: what is that material?
This limitation is not a failure of microscopy. It is a boundary of what magnification can establish. To move past it, the analysis has to probe the material at a smaller scale or through a different physical property.
Raman Spectroscopy and the Vibrational Fingerprint
Raman spectroscopy measures the inelastic scattering of monochromatic light by molecular vibrations. When laser light interacts with a material, most of it scatters elastically, but a small fraction exchanges energy with vibrational modes of the molecules or crystal lattice. The resulting shift in photon energy is characteristic of the chemical bonds present. For fracture filling, this is powerful because the filler and the corundum host have different vibrational spectra. A measurement focused on a fracture can reveal whether the signal matches corundum alone or includes additional bands attributable to a filler.
The method is microsampling by nature: the laser can be focused to a small spot, so it is possible to analyze a fracture without damaging the surrounding stone. However, Raman spectroscopy has real limitations. The filler may be thin, and the laser may sample both filler and host, producing a mixed spectrum. The filler may be amorphous or poorly crystalline, producing broad and weak bands. Fluorescence from the ruby itself, often strong in chromium-bearing corundum, can overwhelm the weaker Raman signal. And the method identifies vibrational signatures; it does not automatically tell the analyst whether a particular spectrum belongs to a specific commercial filler formulation without reference data.
Elemental Methods and the Problem of Depth
Energy-dispersive X-ray fluorescence (EDXRF) probes elemental composition by detecting X-rays emitted when inner-shell electrons are excited and replaced. It is non-destructive and can detect elements heavier than sodium under favorable conditions. If a filler contains elements not present in pure corundum, such as lead, bismuth, or certain transition metals, EDXRF can reveal their presence.
But the same depth problem appears. X-rays penetrate a finite distance into the specimen, and the signal is weighted toward the surface. A filler deep within a fracture may contribute little to the detected spectrum. Conversely, surface contamination or residue from cutting can produce signals that mimic a filler. The method is also relatively insensitive to light elements, and many fillers are organic or contain only light elements, making them effectively invisible to EDXRF. The instrument measures what it can excite and detect; it does not measure everything present.
Laser ablation inductively coupled plasma mass spectrometry (LA-ICP-MS) offers higher sensitivity and spatial resolution. A laser ablates a small volume of material, and the resulting aerosol is analyzed by mass spectrometry. This can detect trace elements at very low concentrations and can map compositional variations across a fracture. The trade-off is that it is micro-destructive: the ablation pit is small but permanent. For high-value gemstones, this is often unacceptable, and the method is typically reserved for research or for cases where other methods are inconclusive.
How the Evidence Chain Actually Works
No single instrument resolves fracture filling definitively in every case. The analytical reasoning is cumulative. Microscopy identifies the fracture and characterizes its optical behavior. Raman spectroscopy probes the vibrational signature of material within the fracture. Elemental methods test for chemical markers that would not be expected in pure corundum. Each method produces a signal that can be interpreted, but interpretation depends on reference data, on the analyst's understanding of the material, and on the specific filler involved.
A useful way to think about this is in terms of competing explanations. Suppose a fracture shows a flash effect and a Raman spectrum with an extra band. The flash effect is consistent with a filler, but also with certain natural inclusions. The extra Raman band is consistent with a filler, but also with a mineral inclusion that happens to have a similar vibrational mode. The combination of both observations strengthens the filler interpretation, but it does not make it certain unless the Raman band matches a known filler reference and the elemental data are consistent. If the elemental data are absent, or if they show only elements that could occur naturally, the conclusion remains probabilistic.
This is why laboratories sometimes describe findings in terms of consistency rather than absolute proof. The physical evidence may be strong, but the inference from evidence to conclusion always involves judgment about what is plausible given the geology of corundum and the known practices of treatment.
What the Instruments Still Cannot Do
The instrumental shift has made fracture filling far more detectable than it once was, but it has not eliminated uncertainty. Instruments cannot determine when a filler was introduced, whether it was applied intentionally or incidentally, or whether a particular filler is stable over geological or human timescales. They cannot always distinguish a filler from a natural phase that happens to occupy a fracture. They cannot identify a filler if it is present in quantities below detection limits or if it is compositionally similar to the host.
There is also the question of what the analysis is actually sampling. A ruby may have multiple fractures, some filled and some not. A measurement on one fracture does not characterize the entire stone. The spatial scale of the instrument matters as much as its sensitivity. A method that averages over a large volume may miss a thin filler; a method with high spatial resolution may sample only a tiny portion of a heterogeneous fracture.
These limitations are not reasons to abandon instrumental analysis. They are reasons to interpret it carefully and to combine methods that probe different physical properties. The strength of modern identification lies not in any single instrument but in the recognition that different methods answer different questions and that no single answer is complete.
The Scientific Insight
The shift from visual inspection to multi-instrument analysis in fracture-filled ruby identification is a case study in how scientific understanding advances through measurement. The filler is a separate material with its own chemistry and vibrational structure. Detecting it requires methods that are sensitive to those properties, and interpreting the results requires an understanding of what each method can and cannot see. The instruments did not make the problem simple. They made it tractable by breaking it into smaller, answerable questions and by making the uncertainty explicit. The most important scientific insight is not that fillers can be detected, but that detection is an evidence chain in which every link has limits and every conclusion depends on how those limits are understood.
