Surface Impressions: Why Tourmalinated Quartz Is Not Always What It Appears

The Surface as a Lens

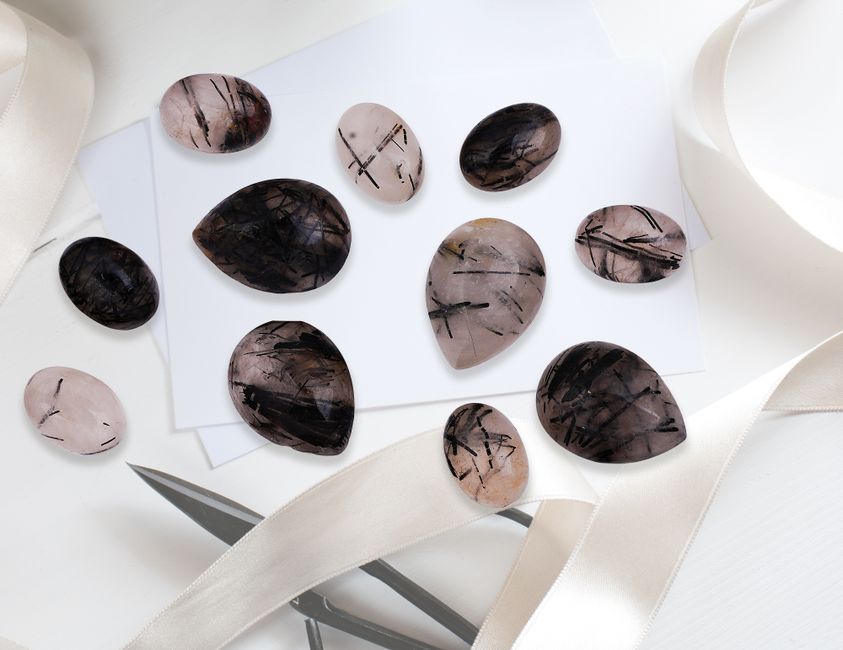

At first glance, tourmalinated quartz appears to be a straightforward gem material: colorless to smoky quartz threaded with black, needle-like crystals of tourmaline. The name itself invites a simple mental picture, yet the material that reaches a gemological laboratory often complicates that picture. The diagnostic challenge lies not in recognizing quartz, but in interpreting the dark inclusions at and beneath the surface. Because the identifying feature of tourmalinated quartz is a set of internal crystals, the analytical question becomes one of surface access: which observations can be made without cutting or damaging the specimen, and what can those observations truly establish?

The answer depends on a surface science perspective. Tourmaline needles are not simply embedded in quartz like raisins in a cake. They grew together with the quartz, and their relationship to the host crystal is recorded in their orientation, morphology, and the boundary between them. That boundary is a physical interface, and its appearance under magnification and spectroscopy is the primary evidence available to a gemologist. The challenge is to separate what the surface reveals from what it conceals.

Growth and the Needle-Host Interface

Tourmalinated quartz forms when quartz and tourmaline crystallize together from a silica-rich fluid. In the most common geological setting, hydrothermal fluids carry boron, aluminum, iron, and other elements that precipitate tourmaline while silica precipitates quartz. The tourmaline needles are typically elongate prisms with a hexagonal cross-section, and they often grow parallel to the c-axis of the host quartz. That crystallographic relationship is not accidental. The two minerals share a similar structural motif of helical silicate chains, allowing tourmaline to nucleate on quartz surfaces in preferred orientations.

Once a tourmaline needle is trapped, later quartz overgrowths cover it. The resulting inclusion is fully enclosed, but the quartz-tourmaline interface remains a discontinuity. Under the microscope, that interface often shows a thin film of fluid or a micro-fracture, evidence of the growth medium trapped between the two minerals. This interfacial layer is not merely an aesthetic detail. It is a physical boundary that can scatter light, alter the apparent color of the needle, and, importantly, provide a channel for treatments such as fracture filling.

What the Needle Shape Tells the Observer

The morphology of the tourmaline inclusion is a growth record. A needle that is sharply terminated, with well-defined prism faces, indicates that tourmaline grew freely into a fluid-filled cavity before quartz engulfed it. Conversely, a needle that is ragged or skeletal suggests rapid growth or partial dissolution during later fluid events. These morphological clues, visible through a gemological microscope, help distinguish a natural syngenetic inclusion from a later fracture-filling or a foreign fragment introduced during a treatment process. But morphology alone cannot prove origin; it is one line of evidence.

The Microscopic Examination: Seeing Beyond the Visible

The first analytical step is optical microscopy, typically at magnifications from 10× to 60×. The examiner looks for the characteristic needle habit, its orientation relative to the quartz host, and the presence of a two-phase or three-phase inclusion trail. In natural tourmalinated quartz, the needles are often accompanied by secondary fluid inclusions that follow healed fractures, which are unrelated to the tourmaline itself. These inclusion trails can be confusing, as they may appear similar to needles at low magnification.

Critical to the surface perspective is the depth of field. Under a standard microscope, the focus is on the surface plane of the polished gem. Needles that lie just beneath the surface may appear to touch the surface, creating an illusion of a surface-reaching inclusion. A slight rotation of the stone or the use of dark-field illumination reveals that most needles are fully enclosed. If a needle truly reaches the surface, it becomes a potential path for later contamination, such as oil or resin, and may affect the stone's durability.

Distinguishing Tourmaline from Other Dark Inclusions

Black needle-like inclusions in quartz can be caused by several minerals: tourmaline, but also actinolite, rutile, goethite, or even hematite. Visual discrimination is unreliable because many of these form acicular crystals with similar aspect ratios. The key diagnostic feature of tourmaline is its pleochroism, but that is only visible when the crystal is viewed in transmitted polarized light. Under crossed polarizers, a tourmaline needle will exhibit parallel extinction, whereas actinolite may show oblique extinction. However, such observations require the inclusion to be suitably oriented and not masked by the host quartz.

Reflected light microscopy is a surface-sensitive technique that can sometimes reveal the interfacial film around a needle. When light is reflected off the polished surface, the interface appears as a bright rim if it contains a fluid with a different refractive index than quartz. This rim is a strong indicator that the inclusion is not simply a solid crystal in perfect contact with the host, but that there is a gap or coating.

Spectroscopic Evidence: Probing the Surface and the Bulk

While microscopy provides visual clues, spectroscopy offers chemical or structural information. The two most useful techniques in gemology are Raman spectroscopy and Fourier-transform infrared (FTIR) spectroscopy. Each approaches the surface differently.

Raman Spectroscopy: Fingerprinting the Inclusion

Raman spectroscopy focuses a laser on a small volume, typically a few micrometers in diameter. If the laser is directed at a tourmaline needle just below the surface, the scattered light contains vibrational signatures characteristic of the tourmaline group. Raman can distinguish tourmaline from other acicular minerals because the spectrum shows a distinct pattern of bands in the 200–1200 cm⁻¹ region. However, the Raman signal comes from the volume of the inclusion, not specifically from its surface. If the needle is deeply buried, the quartz overburden may absorb or scatter the laser, weakening the signal.

The surface science issue arises when the inclusion is extremely close to the surface. The laser may then excite both the tourmaline and the surrounding quartz, or even the polishing compound residue if present. The resulting spectrum is a mixture, and the interpretation requires experience. A poorly resolved spectrum may lead to a false negative, where the examiner concludes that the inclusion is not tourmaline when it actually is.

FTIR Spectroscopy: Seeing the Interfacial Film

FTIR spectroscopy measures infrared absorption, which can identify molecular species such as water, carbon dioxide, or organic oils. When applied to a polished surface, the infrared beam penetrates only a few micrometers, making it extremely surface-sensitive. In tourmalinated quartz, FTIR can detect the presence of water in the interfacial film around a needle. The absorption bands around 3400 cm⁻¹ indicate O-H stretching, while bands near 1600 cm⁻¹ may indicate molecular water. The presence of such bands suggests that the needle-host interface contains fluid inclusions, which is consistent with a natural growth origin. If the stone had been heat-treated, these fluids might have decrepitated, leaving empty cavities that would show weaker or absent water bands.

FTIR is especially valuable for detecting organic fillers. Some tourmalinated quartz specimens, especially those with surface-reaching cracks, are filled with resin or oil to improve clarity. The filler may penetrate along the interface between quartz and tourmaline, altering the visual appearance and potentially mimicking natural fluid films. FTIR can detect the distinctive carbon-hydrogen stretching bands of organic resins around 2900 cm⁻¹, differentiating a treated composite from an untreated natural stone.

The Limits of Surface Analysis

All these techniques share a fundamental limitation: they only probe the outer few micrometers to hundreds of micrometers. A deep-seated tourmaline needle cannot be characterized by surface-sensitive methods. Conversely, a surface-reaching inclusion may be altered by polishing, which can smear the tourmaline or introduce foreign material. Therefore, no single surface observation is definitive.

Geographic origin determination for tourmalinated quartz is not generally attempted, because the material is abundant and the inclusion assemblage is not specific to one locality. The scientific interest lies instead in understanding the paragenesis: the sequence of crystal growth and post-growth events. Surface science contributes to this understanding by revealing the nature of the interface, but it is a limited window into the bulk specimen.

Distinguishing Natural and Treated Surfaces

One common misconception is that a tourmalinated quartz specimen with visible black needles is always natural and untreated. In reality, the quartz may be synthetic, with tourmaline needles grown deliberately during the hydrothermal process. Synthetic quartz can incorporate tourmaline seeds, producing inclusions that resemble natural ones. However, the growth conditions differ. In synthetic material, the tourmaline needles often show a more uniform orientation and a cleaner interface, because the growth environment is controlled. Under high magnification, natural material may show evidence of dissolution or resorption at the needle tips, whereas synthetic growth typically produces sharp, euhedral terminations without such corrosion.

Heat treatment is another potential modification. Tourmaline itself is stable at high temperatures, but the surrounding quartz can crack due to differential thermal expansion, especially when fluid inclusions are present. Heating may also cause the tourmaline to darken or lighten, depending on the iron content. The visible effect is a change in the color of the inclusions, but the underlying mechanism is a change in the oxidation state of iron. Such changes are not detectable by surface analysis alone; they require bulk absorption spectroscopy.

The Interfacial Film as a Guide to Authenticity

The strongest evidence for natural formation may come from the interfacial film itself. In many natural specimens, the interface between tourmaline and quartz is not a sharp contact but a zone of micro-cracks filled with a mixture of water, carbon dioxide, and sometimes hydrocarbons. This zone is a remnant of the hydrothermal fluid from which both minerals grew. When a stone is polished, these micro-cracks may be exposed at the surface, allowing a skilled observer to see a silvery sheen or a rainbow effect, which is an interference phenomenon caused by the thin fluid layer. This effect, sometimes called a 'schiller,' is a surface manifestation of the internal interface.

In synthetic material, the interface is often cleaner, with no such fluid zone, because the growth solution is purer and the cooling is more even. Therefore, the presence of a well-developed interfacial film is a strong indicator of natural origin. Its absence, however, is not proof of synthetic origin, as natural material can also form with clean interfaces if the fluid is exhausted before final quartz overgrowth.

Analytical Reasoning in Practice: A Hypothetical Case

Consider a hypothetical cabochon of tourmalinated quartz brought to a laboratory for identification. Under magnification, it shows several black needles that appear to reach the surface. To determine whether they are truly surface-reaching or merely close to the surface, the gemologist uses reflected light. If the needles are genuinely at the surface, they will appear in reflected light with a metallic luster, whereas sublateral needles will be obscured by the quartz surface.

The gemologist then performs Raman spectroscopy on the largest needle. The spectrum shows the characteristic tourmaline bands, but with an additional broad band around 1600–1700 cm⁻¹, which could indicate an organic coating. Switching to FTIR, the examiner observes strong C-H stretching bands, confirming that a resinous filler is present. This filler likely occupies a surface-reaching crack that runs along the interface of one needle. The conclusion is that the stone is a natural tourmalinated quartz that has been clarity-enhanced with a resin filler. This is a different material from an untreated specimen, and the distinction is important for accurate disclosure.

Conclusion

Tourmalinated quartz, like all gem materials, is more than the sum of its visible components. The black needles that give it its name are not inert decorations but growth records, and their relationship to the quartz host is a key to understanding the stone's history. Surface science provides a necessary but limited toolkit: it reveals the outermost layers, the interfacial films, and the presence of treatments, but it cannot see deep into the interior. A robust analysis requires integrating surface microscopy, Raman and FTIR spectroscopy, and a careful consideration of growth mechanisms. The most important insight is that the visible appearance of a gemstone can be deceptive, and that the true nature of a material lies not only in its bulk but also in the interfaces that bind its components together.
