Diamond and graphite are both made of pure carbon, yet one is the hardest natural material on Earth and the other is so soft it is used as a lubricant. This extraordinary difference is entirely due to polymorphism, one of the most remarkable phenomena in mineralogy. Understanding polymorphism reveals how the same atoms can produce radically different materials depending solely on how they are arranged.
What Is Polymorphism?
Polymorphism is the ability of a chemical substance to exist in more than one crystal structure. The word comes from the Greek for many forms. Polymorphs share identical chemical composition but have different crystal structures, and therefore different physical and optical properties.
Polymorphism is different from isomorphism (different compositions, same structure) and from pseudomorphism (one mineral replacing another while keeping the original shape). In polymorphism, the composition is fixed but the structure varies.
Diamond vs Graphite: The Classic Example

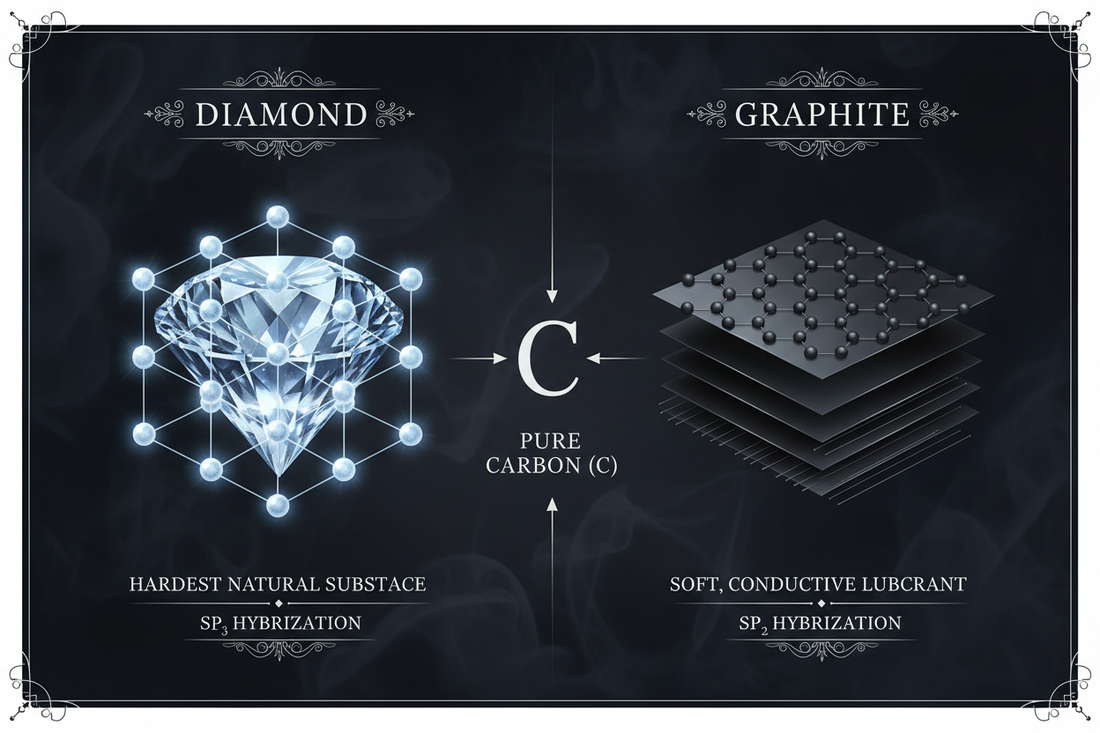

Diamond and graphite are the two most famous polymorphs in science. Both are pure carbon (chemical formula C), but their crystal structures could not be more different.
Diamond Structure
In diamond, each carbon atom is bonded to four neighboring carbon atoms in a tetrahedral arrangement, forming a rigid three-dimensional network. This is called sp3 hybridization. The result is the cubic crystal system with bonds of equal strength in all directions.
- Crystal system: Cubic
- Hardness: Mohs 10 (hardest natural material)
- Density: 3.51 g/cm3
- Appearance: Colorless to various colors, transparent, adamantine luster
- Electrical conductivity: Insulator (except type IIb)
- Formation conditions: High pressure (45,000+ atmospheres), high temperature (1000+ degrees Celsius), mantle depths of 150 to 200 km
Graphite Structure
In graphite, each carbon atom is bonded to three neighbors in flat hexagonal sheets. This is sp2 hybridization. The sheets are held together only by weak van der Waals forces, allowing them to slide easily over each other.
- Crystal system: Hexagonal
- Hardness: Mohs 1 to 2 (one of the softest minerals)
- Density: 2.09 to 2.23 g/cm3
- Appearance: Opaque black, metallic luster
- Electrical conductivity: Good conductor (electrons move freely within sheets)
- Formation conditions: Low pressure, moderate to high temperature
Why the Difference?
The key is pressure. At the extreme pressures of the Earth's mantle, the compact tetrahedral bonding of diamond is the stable form of carbon. At surface pressures, the layered hexagonal structure of graphite is stable. Diamond brought to the surface is technically metastable (it should convert to graphite) but the conversion rate at room temperature is so slow that diamonds last essentially forever.
Other Important Polymorphs in Gemology
The Aluminum Silicate Polymorphs
Three minerals share the composition Al2SiO5 but crystallize in different systems depending on temperature and pressure conditions:
| Mineral | Crystal System | Formation Conditions | Gem Use |
|---|---|---|---|
| Kyanite | Triclinic | High pressure, moderate temperature | Blue gem, collector stone |
| Andalusite | Orthorhombic | Low pressure, moderate temperature | Chiastolite variety; pleochroic gem |
| Sillimanite | Orthorhombic | High temperature, variable pressure | Rare gem; cat's eye sillimanite |
Geologists use these three minerals as pressure and temperature indicators (geobarometers and geothermometers) because each is stable only under specific conditions. Finding kyanite in a rock tells you it formed under high pressure.
Calcium Carbonate Polymorphs
Calcium carbonate (CaCO3) occurs as two important polymorphs:
- Calcite (trigonal): The stable form at surface conditions; forms limestone, marble, and many gem minerals
- Aragonite (orthorhombic): The high-pressure form; found in pearls, coral, and some shells; converts slowly to calcite over geological time
Pearls are composed of aragonite. Over very long periods (millions of years), fossil shells and pearls convert from aragonite to calcite, a process called diagenesis.
Titanium Dioxide Polymorphs
Titanium dioxide (TiO2) occurs as three polymorphs:
- Rutile (tetragonal): The most common; forms the golden needle inclusions in rutilated quartz and creates asterism in star sapphire
- Anatase (tetragonal): Rare gem mineral; adamantine luster
- Brookite (orthorhombic): Rare collector mineral
Silica Polymorphs
Silicon dioxide (SiO2) is the most polymorphic common mineral, with many forms:
- Quartz (trigonal): Most common; stable at surface conditions; includes amethyst, citrine, rose quartz
- Tridymite (hexagonal): High-temperature form
- Cristobalite (cubic): Very high temperature form; found in volcanic rocks
- Coesite (monoclinic): High-pressure form found in meteorite impact craters
- Stishovite (tetragonal): Extreme high-pressure form; found only in meteorite craters
Enantiomorphism: A Special Type of Polymorphism
Enantiomorphism is a special case where a mineral occurs as mirror-image forms (left-handed and right-handed) that cannot be superimposed on each other. Quartz is the most important gem example. Left-handed and right-handed quartz crystals rotate polarized light in opposite directions, a property called optical activity. This property is used in optical instruments and was historically important in the development of stereochemistry.
Polymorphism and Gem Identification
Understanding polymorphism is important for gem identification because polymorphs of the same composition have very different properties:
- Kyanite and andalusite have the same composition but different crystal systems, hardness, and optical properties
- Calcite and aragonite have the same composition but different refractive indices and specific gravity
- Rutile and anatase have the same composition but different crystal habits and optical properties
Frequently Asked Questions
Will diamond eventually turn into graphite?
Technically yes, but the conversion rate at room temperature and pressure is so incredibly slow that it is effectively zero on any human timescale. The activation energy required to break and reform the carbon bonds is enormous. Diamonds are forever for all practical purposes.
Can graphite be converted to diamond?
Yes, but it requires extreme conditions. Industrial synthetic diamonds are made by subjecting graphite to pressures above 45,000 atmospheres and temperatures above 1400 degrees Celsius, with a metal catalyst. Chemical vapor deposition (CVD) is another method that grows diamond from carbon-containing gas at lower pressures.
Are all polymorphs equally stable?
No. At any given temperature and pressure, only one polymorph is thermodynamically stable. The others are metastable and will eventually convert to the stable form, but the conversion rate varies enormously. Diamond is metastable at surface conditions but converts to graphite so slowly it is effectively permanent. Aragonite converts to calcite more readily, especially in the presence of water.
What is the difference between polymorphism and allotropy?
Allotropy is the same concept applied specifically to chemical elements (like carbon existing as diamond, graphite, and fullerene). Polymorphism is the broader term applied to any chemical compound. Diamond and graphite are both allotropes of carbon and polymorphs of the element carbon.
Conclusion
Polymorphism demonstrates one of the most profound principles in materials science: composition alone does not determine properties. The arrangement of atoms matters just as much as which atoms are present. Diamond and graphite, the hardest and one of the softest minerals, are made of identical atoms arranged in completely different ways. This principle underlies all of crystal chemistry and explains why the same elements can produce such extraordinarily different materials across the gem world.
