How Black Inclusions Shape Light Return in Tourmalinated Quartz

The Optical Puzzle of a Transparent Host and Dark Guests

Tourmalinated quartz consists of colorless to milky quartz hosting black, needle-like crystals of tourmaline. At first glance, its appeal seems straightforward: a dark pattern suspended in translucent stone. But the appearance depends on a subtle interplay between the optical properties of the host, the absorption behavior of the inclusions, and the geometry of light entering and leaving the stone. The central scientific question is not merely why the stone is black and white, but how the presence of these strongly absorbing inclusions alters the brightness, contrast, and perceived luster of the finished gem.

Luster and brilliance in transparent gems are governed by reflection at surfaces and by light returning to the observer after internal reflection. A well-cut quartz gem returns a large portion of incident light through total internal reflection, producing brilliance. Dark inclusions interrupt that pathway: they absorb light rather than reflecting it. The result is a reduction in overall light return but an increase in visual contrast that can make the remaining reflections appear more dramatic. Understanding this trade-off requires tracing the fate of a light ray as it encounters a black tourmaline needle.

Absorption, Scattering, and Reflection in a Two-Phase Material

Why Tourmaline Needles Are Black

The tourmaline group consists of complex borosilicate minerals with a wide range of compositions. Black tourmaline, commonly the species schorl, contains iron in its structure. Iron in octahedral coordination produces broad absorption bands across the visible spectrum, particularly through intervalence charge-transfer transitions between Fe²⁺ and Fe³⁺ pairs. These transitions absorb most wavelengths of visible light, leaving little to be transmitted. The result is a nearly complete absorption from about 400 to 700 nanometers, making the crystal appear black or very dark green-brown in thin fragments.

Importantly, tourmaline is strongly pleochroic. Its absorption varies with the polarization direction of light relative to the crystal's c-axis. Light vibrating parallel to the c-axis is often more strongly absorbed than light vibrating perpendicular to it. In thin needles, this can mean that a needle viewed along certain orientations transmits a little light, appearing dark olive or brown rather than perfectly black. But in typical gem thicknesses, the needles are effectively opaque to the eye.

Reflection at the Inclusion Interface

When light traveling through quartz reaches a tourmaline needle, several processes compete. First, light is reflected at the interface because of the difference in refractive index. Quartz has a refractive index near 1.54, while tourmaline has indices ranging from about 1.62 to 1.64 (and up to about 1.69 for some lithium-rich varieties). This index contrast is modest, so Fresnel reflection at a perpendicular interface is only a few percent. However, the needle surfaces are usually not perpendicular to incoming light, and reflection depends strongly on angle. For grazing angles, reflection increases, but such rays are unlikely to contribute substantially to brilliance.

Second, light that enters the tourmaline is rapidly absorbed. Because the absorption coefficient near the peak of the iron-related bands is extremely high, even a needle a few tenths of a millimeter thick absorbs most incident photons. Therefore, the dominant fate of light striking a needle is absorption, not reflection. This is why tourmalinated quartz appears darker than pure quartz of the same cut.

The Cut and Light Return

Total Internal Reflection in the Host

A faceted gemstone's brilliance depends on total internal reflection. Light entering through the crown is refracted toward the pavilion facets. If the angle of incidence at the pavilion exceeds the critical angle, the light is reflected back toward the crown instead of escaping through the bottom. For quartz, the critical angle is about 40.5 degrees, calculated from the sine of the inverse of the refractive index (1/1.54). A cutter chooses facet angles so that light hits the pavilion at angles greater than this, maximizing light return.

When a light ray reflects internally, it may intersect a tourmaline needle. If the reflection has already occurred, the ray is traveling upward toward the crown. If it meets a needle on the way, that ray is lost. Therefore, the presence of needles reduces the number of internal reflections that successfully exit the crown.

Contrast and the Perceived Brightness

Although light return is reduced, the black needles create an effect similar to the dark lines in a well-cut diamond's 'hearts and arrows' pattern, where contrast enhances the visibility of the bright facets. The eye perceives a pattern of bright and dark areas. The dark inclusions lower the overall luminance but increase the modulation. This can make the stone appear more 'sparkly' in small movements because the bright reflections stand out against a darker field. However, if the host quartz is heavily included, the stone becomes too dark and loses life.

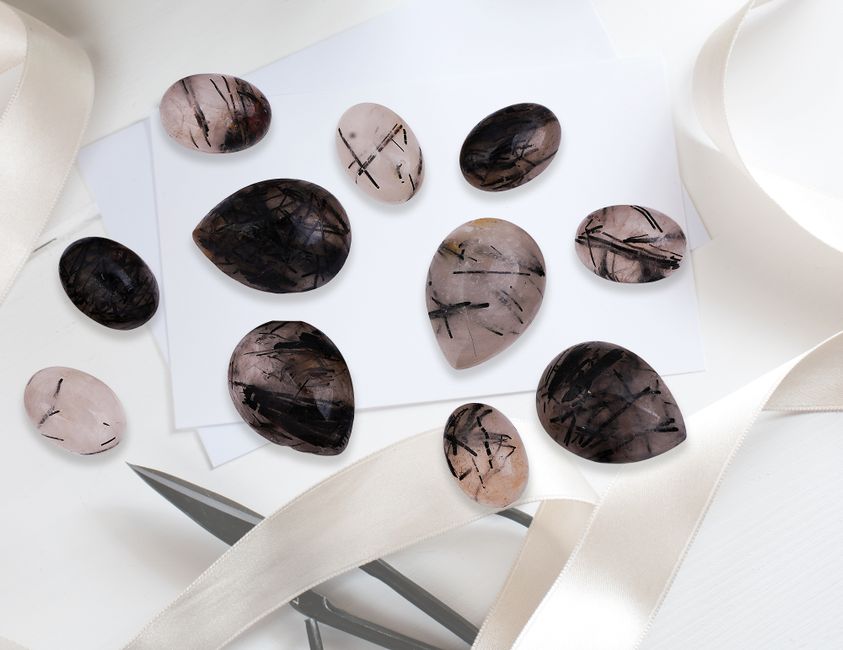

Most tourmalinated quartz is cut as cabochons, beads, or carvings rather than as brilliant-cut faceted stones. A cabochon has a polished dome and a flat or domed back. Light enters the dome, reflects off the back, and exits through the front again. Because the back of a cabochon is often not polished to mirror finish, much light is transmitted out of the back rather than reflected, unless the stone is backed with a metal foil or reflective material. Dark inclusions in a cabochon simply absorb light, making the stone appear deeper in tone. The effect is more like translucent marble than a brilliant gem.

The Role of Quartz Host Transparency

Quartz is remarkably transparent from the near-ultraviolet to the near-infrared, with a refractive index that varies little across the visible spectrum. This low dispersion (about 0.013) means that quartz does not produce strong fire, the rainbow flashes seen in diamond. The brilliance of quartz is therefore mainly due to its refractive index and the cut, not dispersion. In tourmalinated quartz, the host's transparency is essential: it allows light to penetrate deeply and encounter the needles.

If the quartz host is milky or filled with tiny fluid inclusions, light scattering reduces contrast and makes the stone appear hazy. The combination of a clear host and sharp black needles provides the best definition.

Cutting Considerations and Optical Performance

For a faceted tourmalinated quartz (the rarer choice), the cutter must balance between achieving total internal reflection and not excessively absorbing light because the needles are distributed throughout. The critical angle for quartz is fixed, but the presence of dark needles raises the effective absorption. A steep pavilion may cause light to make multiple internal passes, increasing the chance of hitting a needle. A shallower pavilion might allow light to escape more readily, reducing brilliance overall but also reducing the chance of absorption. The optimal cut is thus a compromise between light return and loss to inclusions.

In cabochons, the dome height and base polish matter. A high dome with a polished base acts like a lens and a mirror, respectively, but a transparent base without foil simply lets light pass through. Most tourmalinated quartz cabochons are not backed with foil, and their appearance relies on light that is scattered by internal fractures, the domed front surface, or a reflective mount. A black background behind the stone can make it appear darker, while a light background might wash out the pattern.

Comparing Tourmalinated Quartz to Similar Materials

Tourmalinated quartz is often confused with rutilated quartz, which contains golden or silver needles of rutile (titanium dioxide). Rutile has a very high refractive index (about 2.6 to 2.9) and can produce strong glitter because of high reflection at its surfaces, even when the needles are thin. Tourmaline's lower refractive index means the needles do not sparkle; they simply darken the stone. This distinction is not just cosmetic; it reflects a fundamental difference in the optical interaction between the inclusion and light.

Similarly, black inclusions of other minerals, such as graphite or hematite, would behave differently based on their absorption and reflection. Graphite is a strong absorber with little reflection, similar to tourmaline, while hematite can have a metallic luster and reflect more light.

Laboratory Observation and Measurement

Gemologists examine tourmalinated quartz under magnification to identify the inclusion mineral. Tourmaline needles typically have a prismatic habit, often with striations parallel to the length, and may show a dark olive-brown color in transmitted light when aligned. In contrast, rutile needles are often twisted and have a strong metallic luster. Raman microspectroscopy can identify the mineral definitively by its characteristic vibrational bands. However, for the question of light return, quantitative measurement is more challenging.

Instruments such as a goniophotometer can measure the distribution of reflected and transmitted light from a gemstone, but these are rarely used on included quartz because the pattern is heterogeneous. The effect on brilliance is best understood by ray-tracing simulations that model a specific inclusion geometry. These simulations show that even a small volume fraction of absorbing needles, if oriented parallel to the direction of internal light travel, can dramatically reduce light return.

The Limits of Visual Assessment

The visual appearance of tourmalinated quartz depends strongly on illumination. In direct sunlight, the contrast is high. In diffuse lighting, the stone appears more uniform and less brilliant. This is because the directionality of light affects whether rays undergo total internal reflection. A brilliant-cut stone may show a lively pattern only when light comes from above, while a cabochon relies on light coming from any direction.

Therefore, when assessing the quality of a tourmalinated quartz gem, the observer should consider not just the number and color of the needles, but the transparency of the host, the polishing quality, and the cut proportions. A stone that appears bright on a jeweler's lighting may look dull in hand. This sensitivity to lighting is a property of all faceted gems, but is amplified by the presence of absorptive inclusions.

Conclusion

The beauty of tourmalinated quartz is not a simple sum of black needles and white quartz. It emerges from the interplay between reflection at the host's surfaces, absorption by the inclusions, and the geometry of light paths. The black tourmaline reduces overall light return, but it provides the dark contrast that makes the transparent quartz appear brighter and more structured. The luster of tourmalinated quartz is therefore not high, but its visual interest lies in the pattern, not the sparkle. Understanding this optical mechanism is essential for anyone who cuts, appraises, or admires this distinctive material.
