Calcite Crystal Habits: How Structure Shapes Appearance

Introduction: More than a White Chalk

When most people picture calcite, they imagine a soft, white mineral forming the interiors of caves, the shells of marine organisms, or the powdery streaks left on a blackboard. But for mineralogists and gemologists, calcite is a study in the power of crystal structure to shape appearance. Unlike many gem minerals that are prized for their color or clarity, calcite is celebrated for its sheer diversity of habit—the external shape that crystals take as they grow. Why does calcite form such a bewildering range of forms, from sharp dog-tooth spikes to flat, nail-head blades and fibrous masses? The answer lies not in variations of color or chemistry, but in how the mineral's internal structure interacts with the conditions of crystallization. This article explores how calcite's crystal structure determines its habits, why some habits are more common in certain geological settings, and how gemologists use these forms to distinguish calcite from lookalikes.

The Basic Structural Framework

Calcite is the most stable polymorph of calcium carbonate (CaCO₃). Its crystal system is trigonal, belonging to the hexagonal crystal family, with a rhombohedral primitive cell. The framework is built of alternating layers of calcium ions (Ca²⁺) and carbonate groups (CO₃²⁻), with the planar carbonate groups all lying in the same orientation within each layer. This layered arrangement is the key to both calcite's physical properties and its external morphology.

The carbonate groups are strongly bonded within the plane, but the bonding between the calcium and carbonate layers is comparatively weak. This explains calcite's perfect rhombohedral cleavage: it breaks along three directions that cut through the weak interlayer bonds, producing the classic rhombohedron—a six-faced solid with parallelogram faces, resembling a cube that has been skewed or flattened. The cleavage rhombohedron is so characteristic that it is often used as a quick visual test for calcite, but the natural growth faces of calcite crystals tell a different story.

Habit as a Reflection of Growth

Crystal habit describes the overall shape a crystal takes, which is controlled by the relative growth rates of different faces. In calcite, the unit cell has a pronounced anisotropy—the c-axis (vertical) and a-axes (horizontal) are not equivalent. The carbonate layers stack along the c-axis, and the bonding within the layers is different from that between the layers. As a result, the surface free energies of different crystallographic directions differ, and under different conditions of supersaturation, temperature, and the presence of impurities, different faces grow at different rates.

If the faces that are parallel to the c-axis grow slowly, they become dominant, leading to crystals that are elongated along the c-axis. Conversely, if the faces perpendicular to the c-axis grow slowly, the crystal becomes flattened. Supersaturation—the degree to which the solution is oversaturated with calcium and carbonate ions—is a particularly strong factor. At low supersaturation, growth tends to be more ordered, and the crystal can develop large faces of a limited set of forms. At very high supersaturation, growth may be rapid and lead to spiky or skeletal shapes. Impurities, such as magnesium or iron, can also adsorb onto certain faces, slowing their growth and altering the habit.

The Many Faces of Calcite

Because of its anisotropy, calcite crystallizes in an extraordinary range of habits, more so than almost any other common mineral. The most familiar is the scalenohedral habit, which gives rise to the famous “dog-tooth” spar. These crystals are sharp, steep-sided pyramids that taper to a point, often forming clusters. The scalenohedron is a closed form in the trigonal system with faces that are scalene triangles. In calcite, this habit is common in low-temperature hydrothermal veins and in cave environments where slow, steady growth occurs.

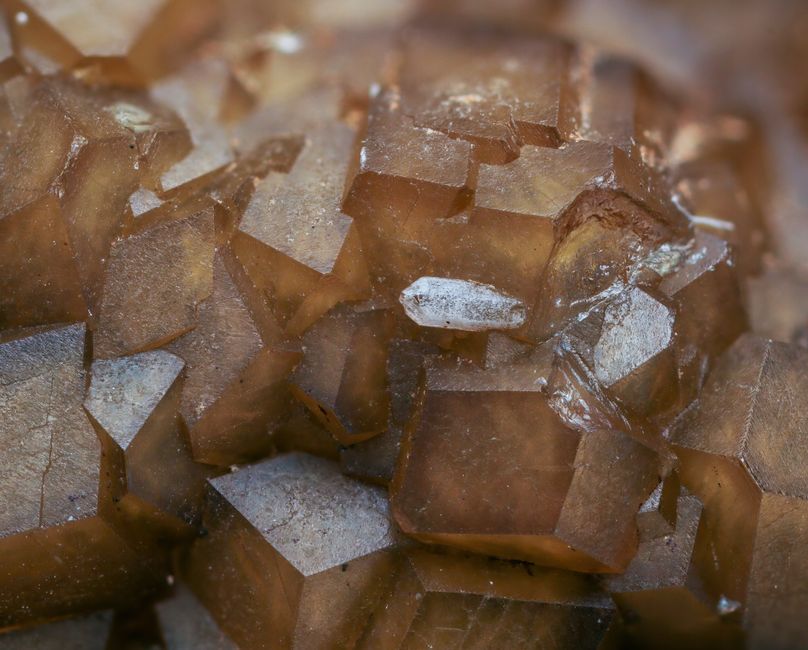

Another common habit is the rhombohedral habit, where the crystal is bounded by the same faces that form cleavage. This produces blocky crystals that look like a cube distorted into a parallelogram. This habit often occurs when growth is interrupted or when the crystal has been partially dissolved, or it may simply reflect nucleation on a seed that already had that shape. Rhombohedral calcite is often clear and colorless, and it is the form most frequently used for optical experiments because it can be split into perfect rhombohedra.

The prismatic habit results when the faces parallel to the c-axis dominate, yielding elongated crystals with a hexagonal cross-section. This is less common than scalenohedral or rhombohedral but occurs in some hydrothermal veins. Conversely, the tabular habit produces thin, flat crystals, often hexagonal in outline. These are typical of continental evaporite deposits, where calcite precipitates from shallow lakes or groundwater. Tabular crystals may also form as a result of the presence of certain organic molecules that adsorb onto the basal faces and slow their growth.

The Role of Twinning and Aggregation

Beyond simple single crystals, calcite often forms twinned crystals, where two or more individuals intergrow in a symmetric manner. The most common twinning law in calcite is the {01‾12} twin, which is a reflection across a plane. Twinning can produce unusual appearances, such as the “butterfly twin” or the “heart twin,” and it can also create re-entrant angles that alter the apparent habit. In some geological settings, such as Alpine fissures, twinned calcite crystals are prized by collectors for their regularity.

Calcite also grows as aggregates—collections of many crystals with various orientations. These include stalactitic and botryoidal forms, which are common in caves. Stalactites grow from the ceiling as dripstone, while botryoidal forms have rounded, grape-like surfaces. These habits are not the result of a single crystal's internal structure but rather of the mineral growing outward in all directions from a central point, often with a radial arrangement of fibers. Similarly, fibrous calcite, known as satin spar, consists of parallel fibers that give a silky luster. Fibrous calcite can be distinguished from fibrous gypsum by its higher hardness and its cleavage.

Why Habit Matters in Identification

For the gemologist, calcite's habit is not just an aesthetic curiosity—it is a diagnostic property. Because calcite has three perfect cleavage directions that produce a rhombohedron, even when a crystal does not display well-formed faces, it will often break into these distinctive shapes. If a colorless, transparent specimen is suspected of being calcite, observing its cleavage by gently tapping it can produce small rhombohedra. This is a safe, non-destructive test (unlike hardness tests, which could damage or scratch a specimen).

Habit also helps distinguish calcite from other minerals that may look similar in color or luster. For example, a clear, colorless calcite crystal with a scalenohedral habit might be mistaken for quartz if one only looks at its transparency and hardness. But quartz grows as hexagonal prisms with pyramidal terminations, never as scalenohedra or rhombohedra. Calcite is much softer (Mohs 3 versus 7), and it effervesces readily in dilute hydrochloric acid, a diagnostic test that quartz does not pass. Likewise, aragonite, another polymorph of CaCO₃, often forms needle-like or pseudo-hexagonal twinned crystals, but aragonite has orthorhombic symmetry and does not display calcite's rhombohedral cleavage. Aragonite is also denser and has a different reaction to acid. Calcite can also be confused with dolomite, which is a calcium-magnesium carbonate, but dolomite does not effervesce as vigorously in cold, dilute acid, and its crystals often have slightly curved faces.

Inclusion studies also rely on habit. In some calcite crystals, fluid inclusions may be trapped during growth, and the orientation of these inclusions can reveal the growth history. In cave formations, the habit of calcite may vary with the season, so studies of growth bands in stalactites can reveal climate changes over time. For the average observer, recognizing whether the material is a single, well-formed crystal or a fibrous aggregate is often the first step in identifying the material.

The Limits of Habit: Not a Guarantee

Although habit is a powerful clue, it is not always diagnostic by itself. Many minerals can adopt similar habits. For instance, calcite's scalenohedral habit is shared by other minerals such as sellaite (magnesium fluoride), though the latter is rare. Moreover, calcite may not always show its characteristic forms. In massive limestone or marble, the mineral occurs as irregular, interlocking grains, and no crystal faces are present. In such cases, the mineral can only be identified reliably by its physical properties (hardness, cleavage, specific gravity) and chemical tests, such as effervescence in acid. In optical mineralogy, calcite's extreme birefringence—it splits light into two rays that travel at different velocities, causing double refraction—provides an almost definitive test when viewing through a transparent specimen. But this requires the specimen to be clear enough, and the test must be performed properly to avoid confusing calcite with other strongly birefringent minerals like zircon or rutile.

Furthermore, synthetic calcite, produced for optical and industrial purposes, may be grown with habits that differ from natural calcite. Hydrothermally grown calcite can be cut into prisms and used in polarizing microscopes. The synthetic specimens may have a habit that reflects the growth conditions rather than a natural environment, but they still possess the same internal structure and therefore the same cleavage and birefringence. Thus, habit alone never proves natural versus synthetic origin.

Practical Observations

To observe calcite's habits, one does not need a laboratory. A hand lens is sufficient to see the crystal faces and cleavage planes. If the specimen is small, a stereomicroscope can reveal faces and twinning. The reaction with dilute hydrochloric acid is a classic field test, but even a vinegar (acetic acid) will produce a gentle fizzing on calcite because the acid attacks the carbonate. This test should be done on an inconspicuous area because the acid will etch the surface. Also, hardness is useful: a copper coin (Mohs ~3.5) will easily scratch calcite, but calcite will not scratch glass. Do not use this scratch test on a gem-quality specimen, however, because it marks the surface. Instead, rely on cleavage, which is a much more elegant and non-destructive indicator.

The specific gravity of calcite is 2.71, which is moderate; it feels a bit heavy for its size but not exceptionally so. The refractive index is approximately 1.486 for the ordinary ray and 1.658 for the extraordinary ray, giving a birefringence of 0.172, an extremely high value that is diagnostic. With a refractometer, this double refraction is readily visible if the instrument can accommodate a high index; however, many refractometers have a range up to 1.81, so they can measure calcite's extraordinary index. The combination of hardness, cleavage, acid reaction, and, when possible, birefringence, will separate calcite from virtually all other common minerals.

Conclusion

Calcite's crystal structure, with its layered arrangement of calcium and carbonate groups, is the root of its many habits, its perfect rhombohedral cleavage, and its extreme birefringence. The external form of a calcite crystal—whether a sharp dog-tooth, a flat tabular plate, or a fibrous mass—is not merely a random accident but a record of how the mineral grew: the temperature, the chemical environment, and the rate of crystallization. Understanding that structure is essential for appreciating why calcite looks the way it does and for using its appearance to make confident identifications. While habits can overlap with those of other minerals, the combination of the rhombohedral cleavage, softness, and effervescence in acid provides a robust test. Thus, when a specimen of calcite is examined, one is reading the physical language of its internal architecture, a message written in the mineral's very shape.
