Diamond Pavilion Angle: What It Is & the Optimal Range Guide

What Is Diamond Pavilion Angle?

The pavilion angle is the angle formed between the pavilion main facets and the girdle plane — the slope of the diamond's lower half as it tapers from the girdle down to the culet. Measured in degrees and listed on every GIA grading report, the pavilion angle is widely considered the single most critical proportional measurement for a round brilliant diamond's light performance.

If you could only evaluate one proportion on a diamond's GIA certificate, pavilion angle would be the one to check.

Why Pavilion Angle Is the Most Important Proportion

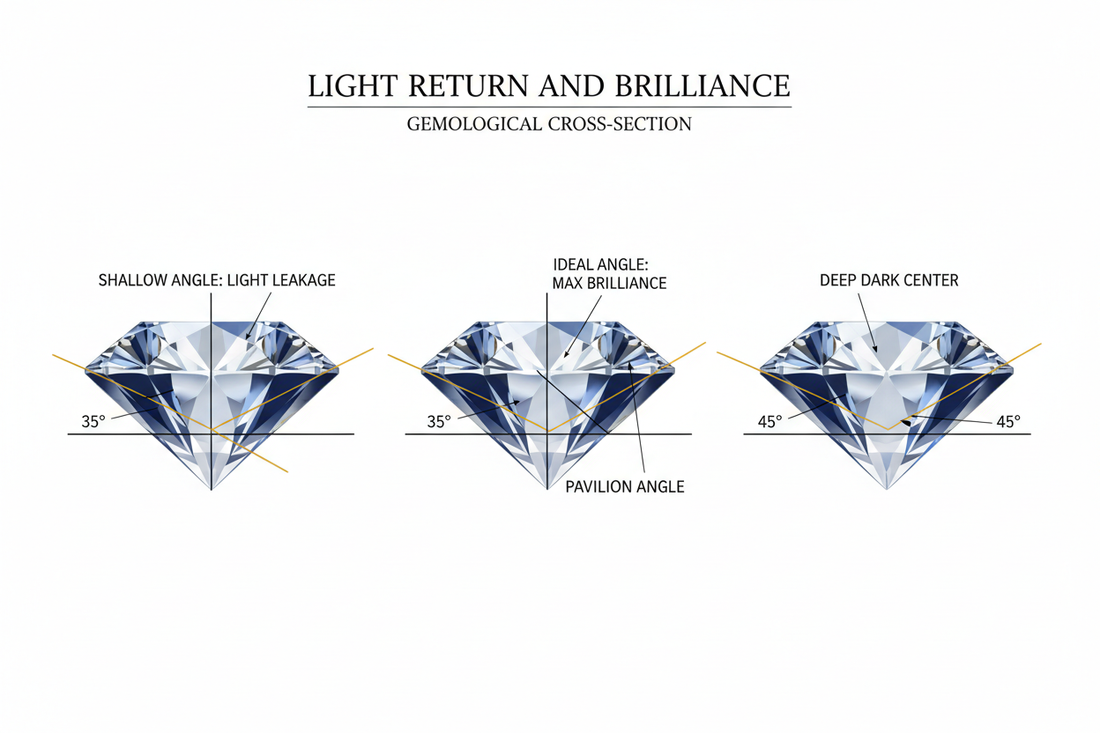

Light enters a diamond through the table and crown facets, travels into the pavilion, and must be reflected back upward through the crown to reach the observer's eye. The pavilion facets act as mirrors — and the angle of those mirrors determines whether light is reflected correctly (back toward the crown) or incorrectly (out through the sides or bottom).

• Ideal pavilion angle: Light hits the pavilion facets at the correct angle for total internal reflection — bouncing back up through the crown as brilliance. The diamond appears bright and full of life.
• Too shallow (low pavilion angle): Light hits the pavilion at too low an angle and passes straight through the bottom. The result is a "fish-eye" effect — a transparent, glassy appearance with a visible reflection of the girdle through the table. Brilliance is severely compromised.
• Too steep (high pavilion angle): Light reflects off one pavilion facet but exits through the opposite side rather than returning through the crown. The result is a "nail-head" effect — a dark, shadowy center. The diamond looks small and dim.

The Optimal Pavilion Angle Range

For round brilliant diamonds, the optimal pavilion angle range is:

• Optimal range: 40.6–41.0 degrees — the sweet spot for maximum light return and brilliance
• Acceptable range: 40.4–41.8 degrees — still produces excellent results within GIA Excellent cut parameters
• Caution zone: below 40.0° or above 42.0° — significant risk of fish-eye or nail-head effects respectively

The optimal range is narrow — just 0.4 degrees separates the ideal from the acceptable. This precision is why pavilion angle is so consequential and why it's the most tightly controlled measurement in super ideal and Hearts & Arrows cutting.

Pavilion Angle and Crown Angle: The Essential Pairing

Pavilion angle works in concert with crown angle. The two measurements must be evaluated together for a complete picture of light performance:

• Pavilion 40.6–41.0° + Crown 34–35° = the classic ideal combination — maximum brilliance with excellent fire
• Pavilion 41.2–41.6° + Crown 33–34° = a slightly deeper pavilion compensated by a shallower crown — still excellent performance
• Pavilion 40.0–40.4° + Crown 35–36° = a shallower pavilion compensated by a steeper crown — acceptable but approaching the fish-eye risk zone

No single proportion tells the complete story. GIA's holistic cut grade accounts for these interactions — which is why a diamond with a pavilion angle of 41.2° can still receive an Excellent cut grade if other proportions compensate appropriately.

Pavilion Angle and the Hearts & Arrows Pattern

For a diamond to display a true Hearts & Arrows pattern, pavilion angle must fall within an extremely tight range — typically 40.6–40.9 degrees — combined with equally precise crown angle, table percentage, and symmetry. The pavilion angle is the foundation of the H&A pattern: the hearts visible from below are created by the pavilion main facets, and their perfect symmetry depends entirely on the precision of the pavilion angle across all eight main facets.

How to Find Pavilion Angle on a GIA Certificate

Pavilion angle is listed in the "Proportions" section of a GIA grading report, alongside table percentage, depth percentage, crown angle, girdle thickness, and culet size. It's shown in the proportions diagram as the angle between the pavilion main facet and the girdle plane.

Practical Evaluation Tips

1. Target 40.6–41.0° pavilion angle as your primary filter for round brilliants
2. Always pair pavilion angle evaluation with crown angle — the combination matters more than either alone
3. Use the GIA cut grade as your primary quality benchmark — it accounts for all proportional interactions holistically
4. Request ASET or Idealscope images — these tools directly visualize light return and will immediately reveal fish-eye or nail-head issues
5. View the diamond face-up in video or in person — look for a bright, even center with no dark shadowing

A Note on Fancy Shapes

GIA does not assign pavilion angle grades to fancy-shaped diamonds (ovals, cushions, pears, etc.). For these shapes, pavilion depth — expressed as a percentage rather than an angle — is the relevant measurement, and optimal ranges vary significantly by shape. Evaluating fancy shape cut quality requires different tools and expertise than round brilliant evaluation.

The Pavilion as the Diamond's Inner Chamber

In crystal healing traditions, the pavilion of a diamond — its lower half, hidden from direct view — is understood as the stone's inner chamber, where light is received, transformed, and prepared for its outward expression. The pavilion angle determines how completely this transformation occurs. A perfectly angled pavilion ensures that every photon of light that enters the diamond is fully engaged, fully reflected, fully returned — nothing wasted, nothing lost. This is the diamond at its most efficient, its most generous, its most fully itself. And that, in the language of crystal healing, is a stone in perfect alignment with its purpose.

Final Thoughts

Pavilion angle is the single most important proportional measurement for a round brilliant diamond's light performance. Target 40.6–41.0 degrees, always evaluate it alongside crown angle, and use GIA Excellent cut as your quality baseline. A diamond with ideal pavilion angle is a diamond that returns light the way it was meant to — completely, brilliantly, and without compromise.
